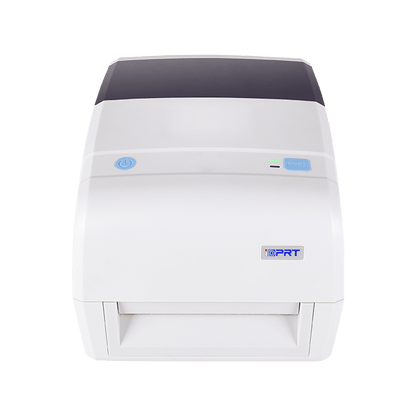

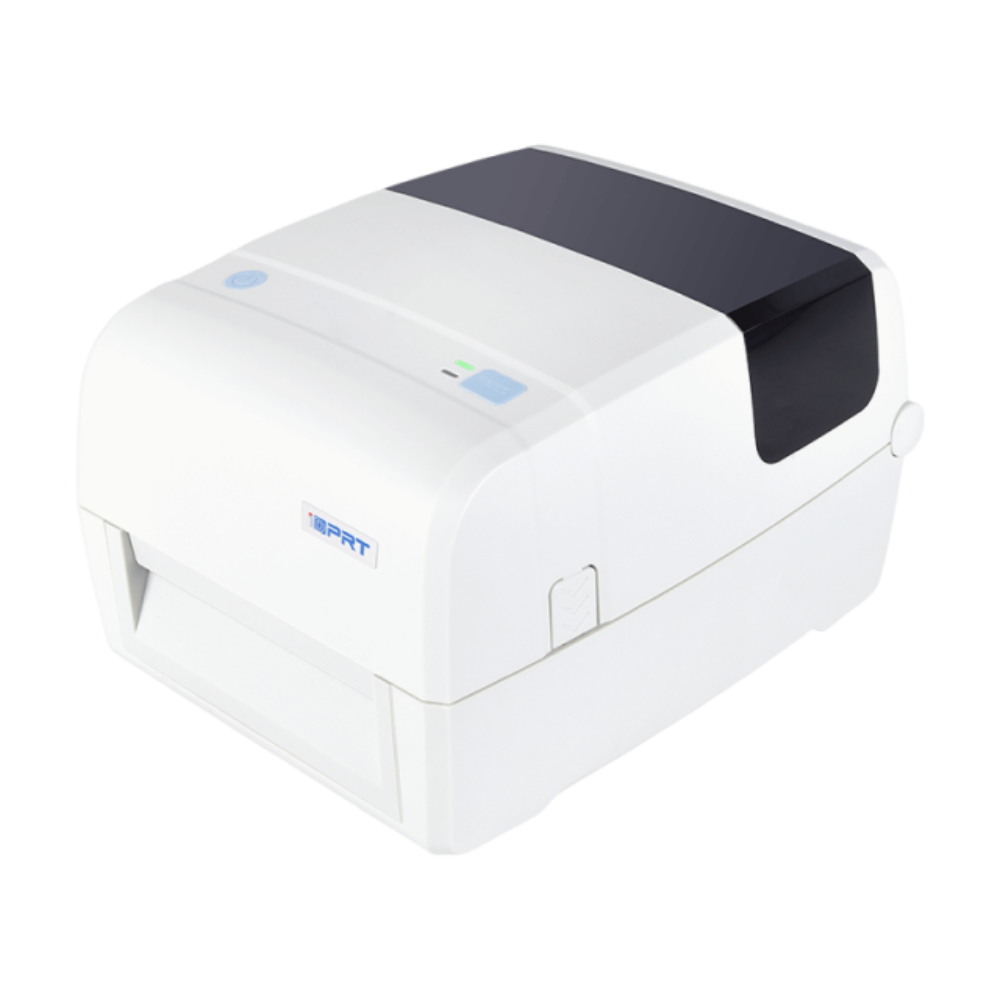

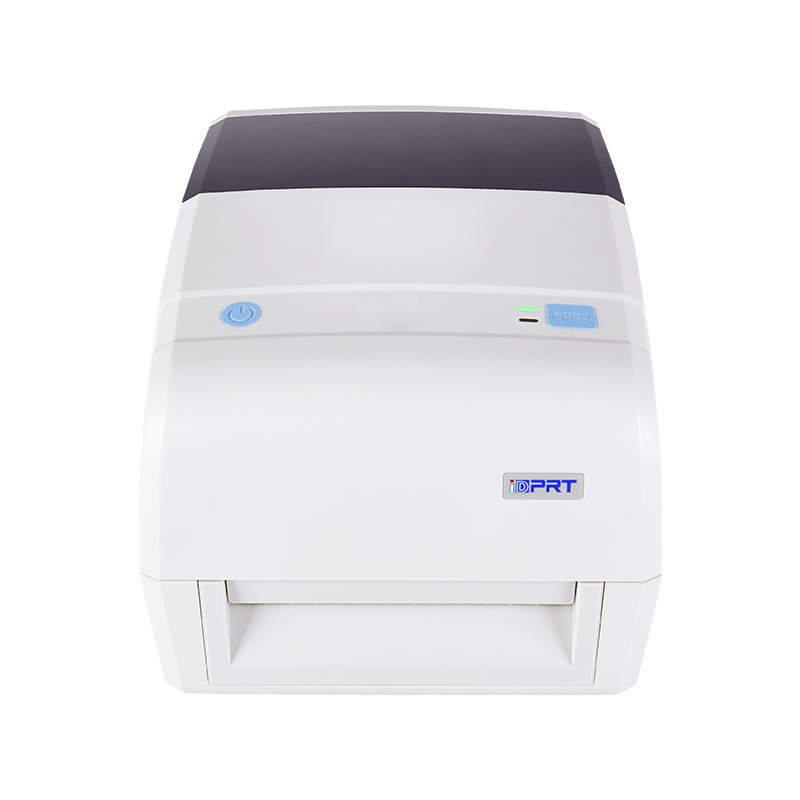

iDPRT iT4S - Thermal Transfer Printer - USB & Ethernet Interfaces
iDPRT iT4S - Thermal Transfer Printer - USB & Ethernet Interfaces
Couldn't load pickup availability
Features：

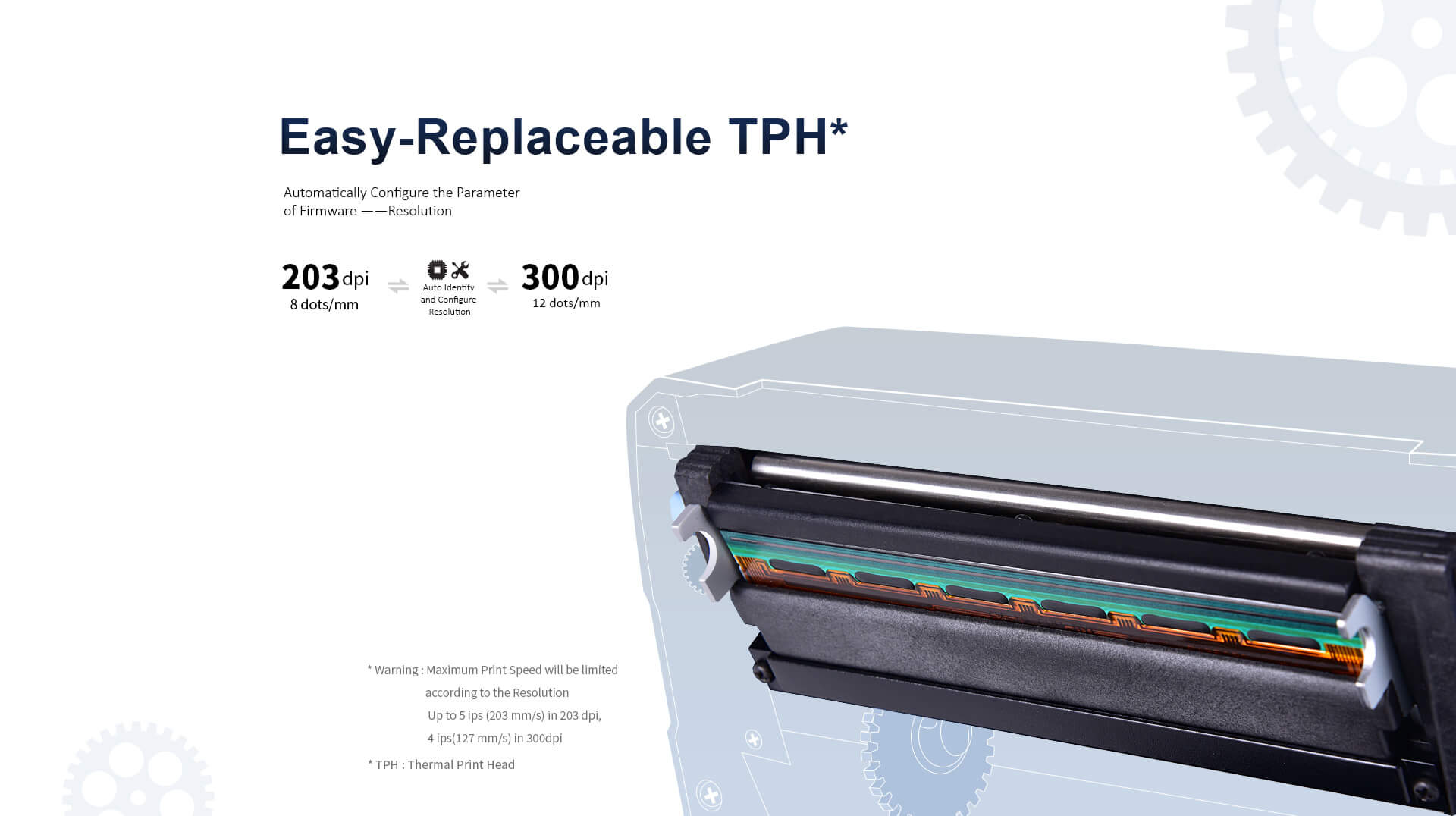

Intelligent Modular Design & Automatic Configuration
The printer features a user-friendly modular print head for easy disassembly and maintenance, while its intelligent system automatically detects 203dpi/300dpi print heads and configures settings without PC intervention, streamlining operation for efficiency.
High-Performance Storage & Professional Software
Equipped with 128MB DDR2 RAM and 8GB Flash storage, it handles complex label designs effortlessly. The included free Bartender label editing software enables intuitive creation of professional labels with text, barcodes, and images, eliminating additional software costs.
Versatile Compatibility & Durable Build
Supports a wide range of label materials and sizes, adapting to logistics, retail, and manufacturing needs. Its refined white housing combines a sleek aesthetic with a stable, durable internal mechanism for long-lasting, reliable performance.
| Resolution | 203dpi, 300dpi | |
|---|---|---|
| Printing method | Direct Thermal and Transfer Thermal | |
| Max. print speed | 6ips @ 203dpi, 4ips @ 300dpi | |
| Max. print width | 4.25"(108mm) @ 203dpi and 4.17"(106mm) @ 300dpi | |
| Max. print length | 90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi | |
| Physical dimension(W x H x D) | 7.09"(180mm) × 11.54"(293mm) × 9.33"(237mm) | |
| Weight | 6.17lbs(2.8kg) | |
| Processor | 32-bit RISC CPU | |
| Memory | 256 MB Flash / 128 MB RAM | |

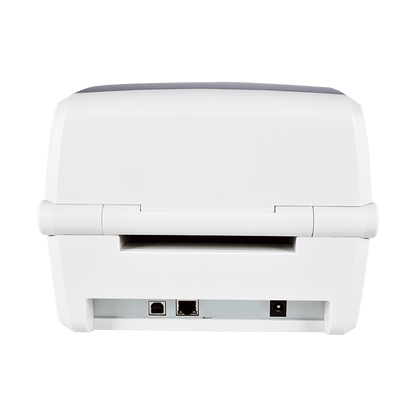

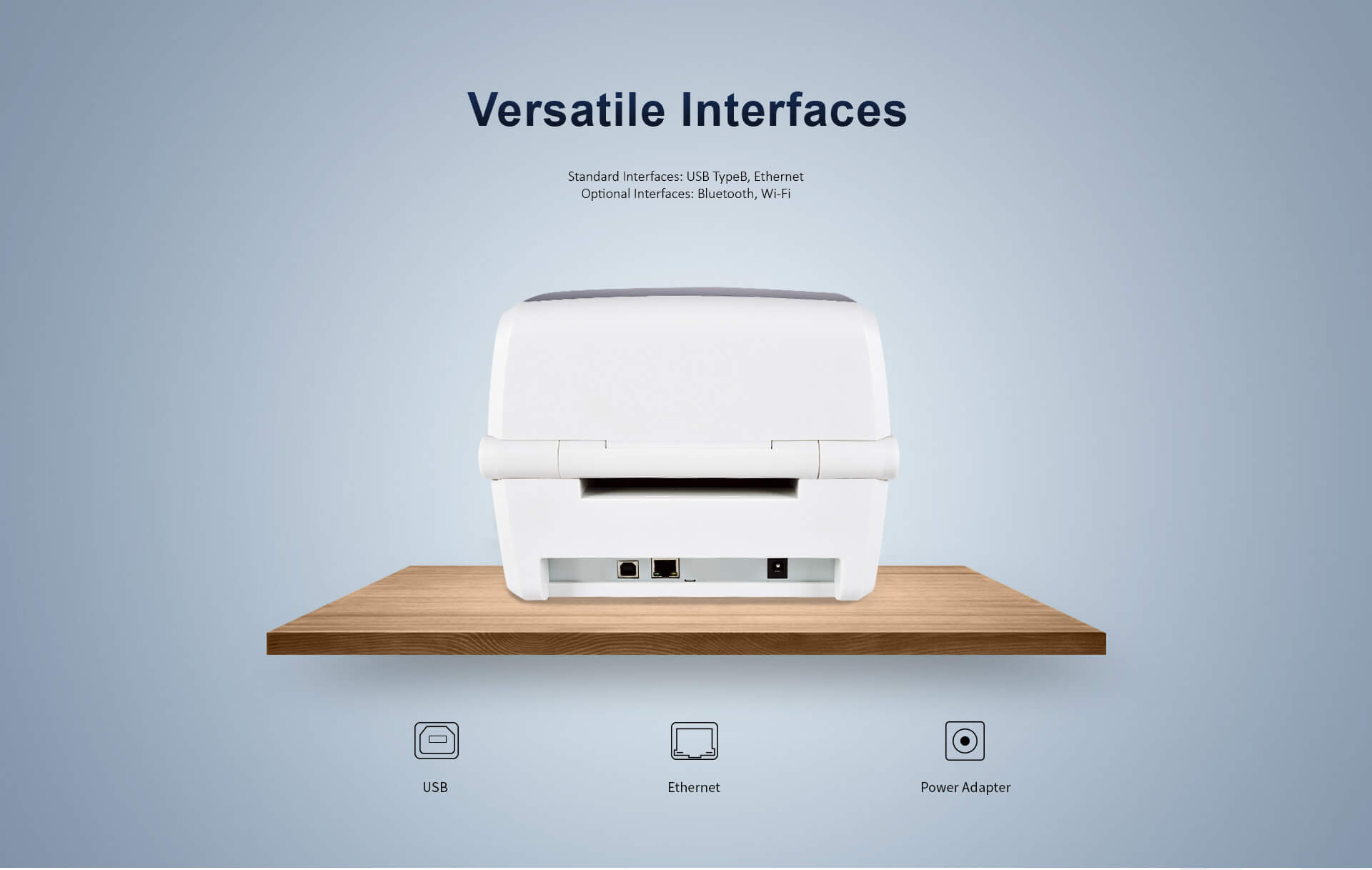

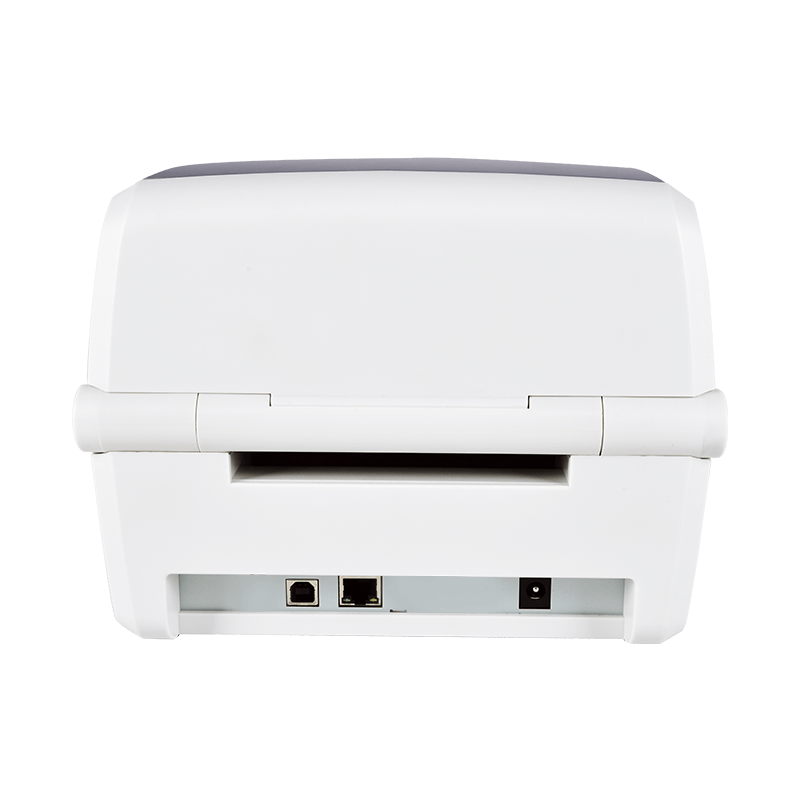

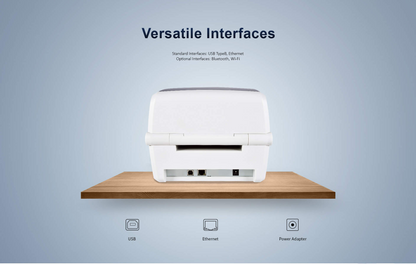

| Interface | Standard: USB-B and Ethernet 10/100Base T Optional: Wi-Fi802.11a/b/g/n, Bluetooth 5.2/LE |
|
| WiFi security encryption | WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) Enterprise (AES CCMP) | |
| WiFi security authentication | EAP-TLS, EAP-FAST, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1. EAP-MDS, LEAP | |
| Power | External universal switching power supply Input: AC 100~240V, 2.5A, 50~60 Hz Output: DC 24V 2.5A, 60W |
|
| User interface | 2 operation buttons(power,feed) 2 LEDs with 3 colors |
|
| Sensors | Gap transmissive sensor Black mark reflective sensor (position adjustable) Head open sensor Ribbon end sensor |
|
| Internal fonts | 8 resident expandable ZPL II bitmap fonts Simplified Chinese, Traditional Chinese Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1251, 1252, 1253, 1254, 1255, 1256 Support with font 0 |
|
| Graphic formats | PCX,BMP | |
| Bar code | 1D barcode: UPC-A, UPC-E, Codabar, CODE128, CODE39, CODE93, EAN-8, EAN-13, UCC/EAN128, POSTNET, ITF14, MSI, Plessey, Telepen, GS1 DataBar, German Post Code, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, CODE11, EAN14 2D barcode: PDF417, Data Matrix, Maxicode, QR Code, MicroPDF471, Aztec |
|
| Font and barcode rotation | 0, 90, 180, 270 degree | |
| Printer Language | ZPL-II, TSPL, DPL, EPL2 | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch | |
| Media handling | Standard: Continuous, Tear-Off / Options: Peel-Off, Cut | |
| Media width | Min 1"(25.4mm) / Max 4.65"(118mm) | |
| Media thickness | 0.002"(0.06mm) to 0.010"(0.250mm) | |
| Media core diameter | 0.5"(12.7mm)/ 1"(25.4mm)/ 1.5"(38.1mm) | |
| Media max. roll diameter | 5.0"(127mm) | |
| Media length | Min.: Tear-Off 0.24"(10mm) @ 203dpi, 0.2"(8mm) @ 300dpi Min.: Peel-Off , Cutter 1.0"(25.4mm) Max.: 90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi |
|

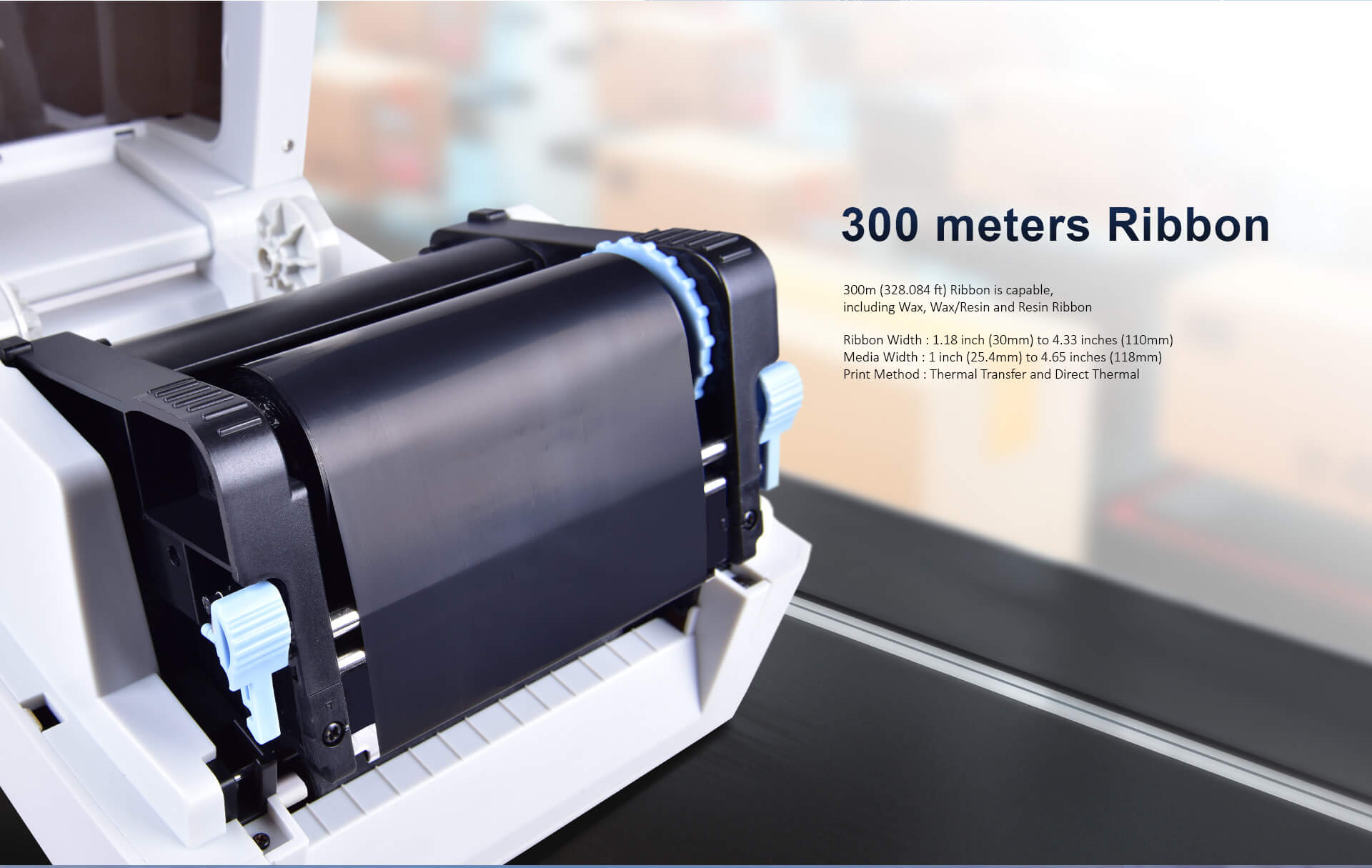

| Ribbon type | Wax, Wax/Resin, Resi | |
| Ribbon length | 984.3 ft(300m) | |
| Ribbon core diameter | 1.0"(25.4mm) | |
| Ribbon width | Min 1.18"(30mm) / Max 4.33"(110mm) | |
| Environment condition | Operating Temperature: 41° to 122°F (5° to 50°C) (limitations based on selected media) / Operating Humidity: 25 to 85% RH Non-Condensing Storage Temperature: -4° to 140° F (-20° to 60° C) / Storage Humidity: Non-Condensing |
|
| Safety Certification | CCC, FCC, CE, CB, Energy Star | |
| Environmental concer | RoHS, WEEE | |
| Options | Wi-Fi802.11a/b/g/n/ac Bluetooth 5.2/LE Peel Guillotine cutter |
