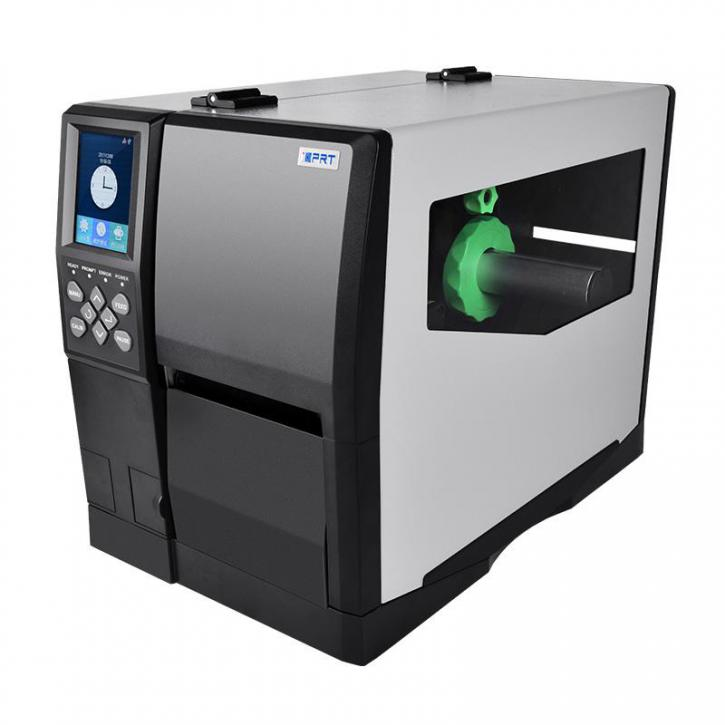

iDPRT - iX4P - Industrial Printer - 200/300dpi 3.5" screen multi-ports - Industrial warehouse
iDPRT - iX4P - Industrial Printer - 200/300dpi 3.5" screen multi-ports - Industrial warehouse
Couldn't load pickup availability
● Print speed up to 14 ips;
● The modular design of printer head makes the disassembly and assembly easy;
● With the function to automatically identify the printer head with 203 dpi, 300 dpi and automatically configure the printer without PC settings;
● With super large storage, DDR2 RAM 512 MB, Flash 256MB;
● Support multiple interfaces USB HOST, serial interface, B-type USB, Ethernet port for standard, and 36-pin Parallel Port, D-Sub(15-pin), Wi-Fi, RFID(UHF) for optional;
● 3.5-inch color LCD touch screen and USB HOST to achieve offline operation;
● Cool black metal housing to get the printer stable and durable;
● With various media to meet the demand of wide area;
● With free label editing software Bartender to make the label editing convenient and easy
|
Model
|
iX4P
|
|
Printing Method
|
Direct Thermal / Transfer Thermal
|
|
Resolution
Max.Printing Speed |
203 dpi / 12 ips
|
|
Optional 300 dpi / 8 ips or 600 dpi / 4 ips
|
|
|
Max.Pringting Length
|
2286 mm(203 dpi)
|
|
1524 mm(300 dpi) ; 762 mm(600 dpi)
|
|
|
Max.Printing Width
|
104 mm
|
|
Protocol
|
ZPL,DPL, EPL
|
|
Printing Media Type
|
Continuous paper, seam label paper,
|
|
Black Label paper, punched paper,
|
|
|
environmental protection thermal label paper
|
|
|
special coated paper, synthetic fiber label
|
|
|
paper, textile belt
|
|
|
Printing Media Diameter
|
1.5 inches/ 3 inches inner diameter
|
|
Maximum 10-inch outer diameter
|
|
|
Printing Media Thickness
|
80 um ~ 250 um
|
|
Printing Media Width
|
25 mm ~ 120 mm
|
|
Ribbon Type
|
Wax, Resin, Wax and resin mixture
|
|
Ribbon Die
|
1 inch
|
|
Ribbon Width
|
30 mm ~ 110 mm
|
|
Ribbon Length
|
600 meters
|
|
Sensor Configuration
|
Print mechanism off detection,
|
|
Ribbon off detection,Media off detection,
|
|
|
Print head temperature detect
|
|
|
Seam label/ punched label/Black label
|
|
|
positioning detection,
|
|
|
motor emperature detect
|
|
|
Standard Communication Port
|
1 USB-B, 3 USB HOST
|
|
1 Ethernet Port, 1 RS232 Serial Port
|
|
|
Optional Communication Port
|
Parallel Port or Labeller Port, WiFi
|
|
UHF RFID
|
|
|
RAM
|
512 MB
|
|
Flash
|
256 MB
|
|
Operation window
|
4 status lights, 6 buttons
|
|
3.5 inches color screen
|
|
|
Optional accessories
|
Peeler Module,
|
|
Cutter Module
|
|
|
External Label Roll Holder
|
|
|
Dimension (L*W*H)
|
460.4 x 263.6 x 330.5mm
|
|
Weight
|
12.5KG
|
|
Certificate
|
CE, FCC, CCC, CB, RoHS, WEEE
|
